PV21 / PV22 / PV23 / PV27 / PV18 / PV15 / PV90R130 Hydraulic Pump
Parts High Performance
Danfoss PV21 / PV22 / PV23 / PV27 / PV18 / PV15 / PV90R130 Pump
Parts
Quick Detail:
| Place of Origin | China |
| Model No: | |
| Series | PV15/PV18/PV20/PV21/PV22/PV23/PV24/PV25/PV26/PV27 For the Danfoss we also have MPTO46/MPV046/MPTO35. SPV6/119 PV90R030/PV90R42/PV90R55/PV90R75/PV90R100/PV90R130/PV90R180/PV90R250
|
| DESCRIPTION | QTY |
| SPV20 |
| Piston shoe | 9 |
| Welded piston | 9 |

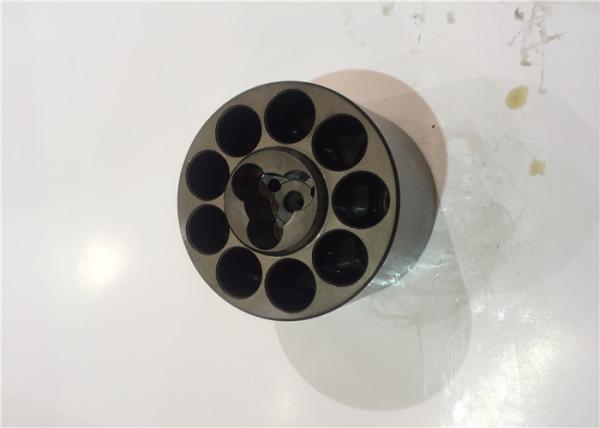

| Cylinder block | 1 |
| Valve plate M | 1 |
| Valve plate RH | 1 |
| Valve Plate LH | 1 |
| Retainer plate | 1 |
| Ball guide | 1 |
| Bearing plate | 1 |
| Thrust plate | 1 |
| swash plate—pump | 1 |
| Swash plate—motor | 1 |
| Pump shaft | 1 |
| Motor shaft | 1 |
| Shaft seal | 1 |
| Vale assy | 1 |
| Charge pump | 1 |
| Control valve | 1 |
| Coil spring | 6 |
| Small spring | 1 |
| bush | 1 |
| Sleeve | 1 |
| Loing pin | 1 |
| Big bearing | 1 |
| Small bearing | 1 |
| Barrel washer | 1 |
| Barrel washer | 1 |
Description:
Series :PV15/PV18/PV20/PV21/PV22/PV23/PV24/PV25/PV26/PV27
For the Danfoss we also have : MPTO46/MPV046/MPTO35.
SPV6/119
Additional:
Excavator piston pump and travel motor
1, SPK10/10(E180,E200B)
2, SPV10/10(MS180-3,MS180-8,EL240)
3, VRD63(E110B,E120B)
4, AP12(320,E315)
5, A8VO107(320B,E300L,E325L)
6, A8VO160(E330B,E345L)
7, CT12G,CT14G,CT15G,CT16G
TOSHIBA swing motor
SG02,SG04,SG08,SG15,SG20,MFC
REXROTH excavator piston pump and travel motor
1, A8VO:A8VO55,A8VO80,A8VO107,A8VO160
2, A2F:A2F23,A2F28,A2F55,A2F80,A2F107,A2F160
3, A4VSO:A4VSO40,A4VSO45,A4VSO56,A4VSO71,A4VSO125,A4VSO180,
A4 VSO250,A4VSO355
4, A4VG:A4VG28,A4VG45,A4VG50,A4VG56,A4VG71,A4VG125,A4VG180,A4VG250
5, A6V:A6V55,A6V80,A6V107,A6V160,A6V225,A6V250
6, A7V:A7V16,A7V28,A7V55,A7V80,A7V107,A7V160,A7V200,A7V250
7, A8V:A8V55,A8V80,A8V107,A8V115,A8V172
8, A10VSO:A10VSO28,A10VSO43,A10VSO45,A10VSO71,A10VSO100,A10VSO140
9, A10VD:A10VD17,A10VD21,A10VD28,A10VD43,A10VD71
10, A11V:A11V130,A11V160,A11V190,A11V250
11,: AP2D21,AP2D25,AP2D36,AP2D38
DANFOSS
1, PV20:PV18,PV20,PV21,PV22,PV23,PV24,PV25,PV26,PV27,PV29
2, 90:90-030,90-055,90-075,90-100,90-130,90-180,90-250
EATON:3321/3331,4621/4631,5421/5431,7621
VIKERS:PVE19,PVE21,PVH57,PVH74,PVH98,PVH131,PVB5/6,PVB10
NACHI:
1,PVD2B:PVD2B-34,PVD2B-36,PVD2B-38,PVD2B-40
2,PSV2:PSV2-55(SH100/120)
VOLVO:
F11-5,F11-10,F11-14,F11-19,F11-58,F11-60,F11-80,F11-90,F11-110,F11-150,F11-250
KAYABA
MAG120,MAG150,MAG170,MAG200,MAG230
LINDE
B2PV50(BPR50),B2PV75(BPR75),B2PV105(BPR105),BPR140,BPR186
TAIJIN
GM07,GM08,GM19,GM23,GM24,GM28,GM30F,GM30H,GM30VA,GM35VA,GM38H,GM38VA
Appliions:
PV of PV20,PV21,PV22,PV23,PV24 hydraulic axial variable
displacement piston pump
1. Heavy duty hydraulic piston pump
2. Completely interchangeable with original
3. Widely applicable for agricultrual machinery, engineering
machinery, mining machinery,industrial
machinery,
aviation and transport machinery etc.
4. The hydrostatic hydraulic transmission drive in close system,
consisting of PV20/21/22/23/24
serie heavy duty piston pump and motor can work continuously with
pressure 21Mpa
under max. speed.
5. Peak pressure of system is up to 35MPa, and min. pressure is
0.9Mpa higher than housing pressure.
6. Max. housing working presssure is 0.28Mpa.
7. Set pressure of charging relief valve of pump and motor are
respectively 1.31-1.45Mpa and
1.10-1.24Mpa higher
than housing pressure, and max. oil temperature is 80°C.
8. Very competitive price
9. year of warranty
